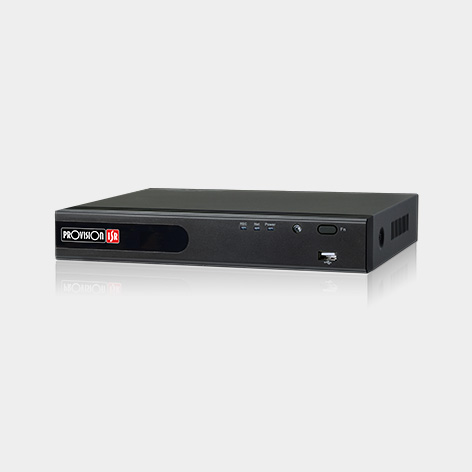

SA-8200AHD-1
8CH 720P AHD + 1CH, 960P IP HYBRID DVR, Input: 8Ch AHD/Analog BNC, + 1Ch IP (Over Network), Output: HDMI, VGA, Mini Metal Case, 1 HDD, Audio In/Out, RS-485, 100Mbps Network
- Descripción
- CategorÃas de Productos
Descripción
VIDEO
Input: 8 Channel AHD /Analog (BNC) + 1 Channel IP (Over Network)
Output: VGA: 800×600/1024×768/1280×1024 HDMI: 1920×1080
RECORDING
8CH AHD/Analogue + 1CH IP
AHD: 720P
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 1280×720 (PAL/NTSC)
Analogue: 960H
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 960×575 (PAL) / 960×480 (NTSC)
IP: 960P
FPS: 25 (PAL) / 30 (NTSC)
Resolution: 1280×960 (PAL/NTSC)
PLAYBACK
4 Channel Simultaneously
AUDIO
Input: 1 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio
STORAGE
1 x SATA (Up to 4TB)
USB PORT
2 x USB2.0
NETWORK
RJ-45: 100Mbps
PTZ / KEYBOARD
1 x RS485
Protocol: Pelco DP/Samsung/Visca (IP Over ONVIF)
ALARM
Input: 8 Channel
Output: 1 Channel
