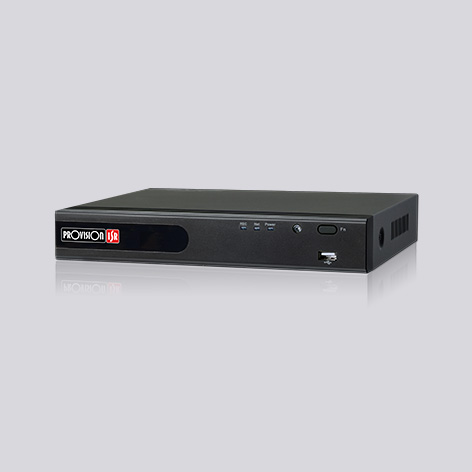

SA-8200AHD-2
8 CH AHD + 4 CH IP Hybrid DVR, Input: 8CH AHD Standard BNC + 4CH IP (Over Network), Output: HDMI, VGA (800×600, 1024×768, 1280×1024), CVBS, Small Case, 1 HDD, Audio In/Out, RS-485.
- Descripción
- CategorÃas de Productos
Descripción
VIDEO
Input: 8 Channel AHD /Analog(BNC)
Output: VGA: 800×600/1024×768/1280×1024
HDMI: 1920×1080
RECORDING
Real-Time 8CH 1080P Lite
1080P Lite:
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 928×1072 (PAL/NTSC)
(Digitally Upscaled to 1920×1080)
960H:
FPS: 200 (PAL) / 240 (NTSC)
Resolution: 960×575 (PAL) / 960×480 (NTSC)
PLAYBACK
4 Channel Simultaneously
AUDIO
Input: 1 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio
STORAGE
1 x SATA (Up to 6TB)
USB PORT
2 x USB2.0
NETWORK
RJ-45: 100Mbps
PTZ / KEYBOARD
1 x RS485
Protocol: Pelco DP/Samsung/Visca
Control de Accesos
Control de Personal
