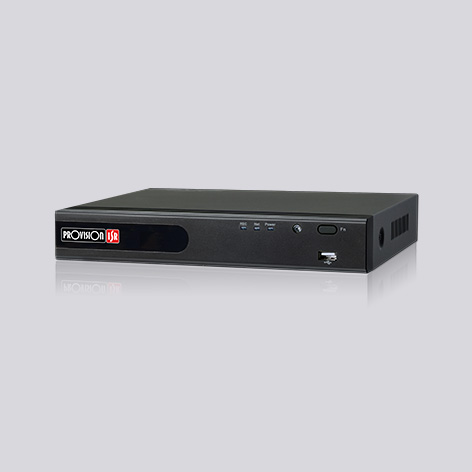

SA-4050AHD-2(MMA)
4 CH AHD + 1 CH IP Hybrid DVR, Input: 4CH AHD Standard BNC + 1CH IP (Over Network), Output: HDMI, VGA (800×600, 1024×768, 1280×1024), CVBS, Mini Metal Case, 1 HDD, Audio In/Out, RS-485, 100Mbps Network.
- Descripción
- CategorÃas de Productos
Descripción
VIDEO
Input: 4CH AHD Standard BNC + 1CH IP (Over Network)
Output: HDMI, VGA (800×600, 1024×768, 1280×1024), CVBS
RECORDING
Real-Time: 4CH 1080P Half Real-Time
720P:
FPS: 100 (PAL) / 120 (NTSC)
Resolution: 1280×720 (PAL) /1280×720 (NTSC)
960H:
FPS: 100 (PAL) / 120 (NTSC)
Resolution: 960×575 (PAL) / 960×480 (NTSC)
PLAYBACK
4 Channel Simultaneously
AUDIO
Input: 4 Channel (RCA)
Output: 1 Channel (RCA)
2 Way audio
STORAGE
1 x SATA (Up to 3TB)
USB PORT
2 x USB2.0
NETWORK
RJ-45: 100Mbps
PTZ / KEYBOARD
1 x RS485
Protocol: Pelco DP/Samsung/Visca
ALARM
Input: 4 Channel
Output: 1 Channel
