I3-380IP04

Provision ≫ I3-380IP04

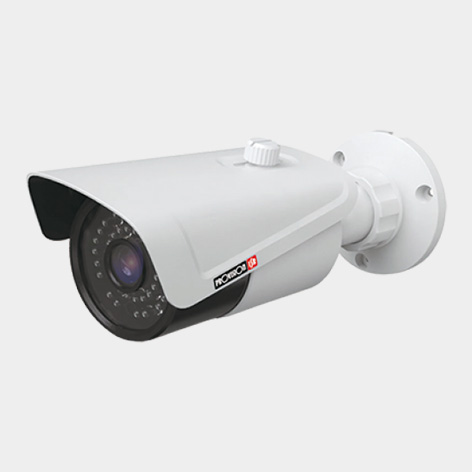

› Cámara IP Bullet IR 30 mtrs
› 1,3 Mega-Pixel
› ONVIF
› IP66 Poe
› Lente fijo 4mm

SKU: I3-380IP04 Categorías: , Etiquetas: , ,
  • Descripción
  • Categorías de Productos

Descripción

Model I3-380IP04
Image Sensor Sony Exmor IMX138 1/3″ CMOS
Effective Pixels 1280×1024
Electronic Shutter 1/25s ~ 1/100000s
Day & Night ICR
Min. Illumination 0lux (IR ON)
Audio compression G711A
Communication One Way Audio
Image Settings AWB, AES, AGC Adjustable, Exposure Mode (Auto / Manual), BLC, HLC Adjustable, Sharpness, Saturation, Brightness & Contrast Adjustable
WDR Range Digital WDR
Noise Reduction 3D-DNR
Image Orientation Mirror/Flip
Privacy Zone Yes
Motion Detection Yes
Video Compression H.264
Resolution 960P (1280×960), 720P (1280×720), VGA (640×480), QVGA (320×240)
Multi-stream “1280×960 (1~30fps) / 1280×720 (1~30fps) / 1280×720 (1~30fps) / 640×480 (1~30fps) / 320×240 (1~30fps)”
Bit rate 64Kbps ~ 4Mbps
Encode Mode VBR/CBR
Image Quality Five levels under VBR; Free adjustment under CBR
IR Distance 30m (42 IR LED)
Lens 4mm
Iris Fixed Iris
Lens Mount Φ14 mount
Water-proof IP66
Bracket 3-Axis Wall Bracket
Dimensions Φ87mm×219mm
Weight(gross) 635g
Network RJ45 (+PoE)
Power DC Socket
Analog Video Output CVBS (BNCx1)
Mic Connectivity 1Ch Input
SD Card No
RS485 No
Alarm No
Remote Monitoring IE Browsing, CMS 2.0 Control Software
User Access Supports simultaneous monitoring for up to 4 users with multi-stream real time transmission
Network Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP
ONVIF Yes
Ethernet 100Mbps
PoE Yes
Power Supply DC12V/PoE
Work Environment -10℃~50℃, 10%~90% Humidity
